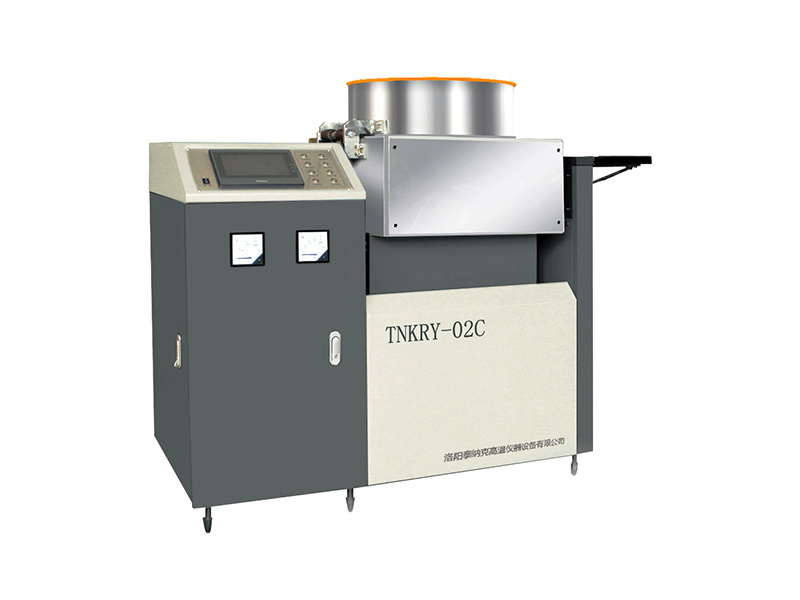

TNKRY-02 Fusion Machine
TNKRY-02 Fully Automatic Intelligent Fusion Machine for X-ray Fluorescence Spectroscopy
1、High Operational Reliability
The TNKRY-02 fusion machine is an upgraded, fully automatic fusion machine dedicated to XRF spectroscopy. Through long-term market validation and improvements, its technical performance and reliability have achieved leading domestic standards.
2、Excellent Reproducibility of Fusion Results
The machine combines furnace body front-rear swinging with simultaneous sample bracket rotation, ensuring vortex motion of the molten sample for superior homogeneity and bubble removal.
3、Versatile Material Compatibility
Equipped with silicon carbide rod heating, platinum-rhodium thermocouples, PLC control, and default parameter settings, it offers simple operation, high automation, and precise temperature control (±1°C). Capable of high-quality fusion for diverse materials at varying temperatures, meeting multi-industry analytical standards.
4、Multiple Protection
Includes thermocouple breakage, over-temperature alarms, and hardware-software dual protection during limit-exceeding scenarios to ensure long-term stability.
5、Independent Smoke Exhaust Channel
An added corrosion-resistant exhaust channel efficiently removes harmful gases during fusion, reducing damage to furnace refractories and crucible bracket, extending component lifespan, and lowering costs.
6、One-Button Crucible Air Cooling
The newly integrated air cooling system significantly shortens cooling time and boosts efficiency.
7、Integrated Pre-Oxidation Function
Eliminates the need for separate muffle furnace pre-oxidation steps, simplifying workflows.
8、Enhanced Heating Efficiency
New heating elements reduce heating time to ~25 minutes (room temp to 1100°C) and improve temperature recovery by 70% after lid operation.
9、Advanced Furnace Design
Advanced refractory material raises long-term operating temperature to 1350°C. Structural optimization resolves thermal shock-induced cracking.
10、Comprehensive Training & Support
Technical Support by 20+ years experienced engineers, integrating fusion and XRF analysis. Guaranteed 10-minute response and 1-hour remote troubleshooting.
Main Technical Specifications
Automatic Control System | Touchscreen HMI + AI Intelligent Temperature Control System + PLC Program Control |
Heating Rate | Average 40°C/min |
Rated Temperature | 0~1250℃(1300℃) |
Heating Element | Silicon Carbide Rods |
Temperature Control VAccuracy | ±1°C (S-type Pt-Rh Thermocouple) |
Fusion Capacity | 6 positions |
Furnace Swing Angle | 0–40° adjustable |
Bracket Rotation Rate | 0–20 rpm adjustable (inverter stepless speed control, bidirectional rotation) |
Operational Versatility | Programmable Work Curves: 9 |
Instrument Weight | 380kg |
Power | 8kw |
Protection Functions | Overload, thermocouple breakage, over-temperature alarms |
Power Supply Requirements | 3-phase 4-wire AC power supply with a grounding protection system (grounding resistance ≤4Ω) |
Equipment Dimensions(L×W×H) | 1120mm×630mm×1020mm Packaging Dimensions: 1400mm × 970mm × 1390mm (L×W×H) |
